INTRODUCTION

BlueTag TH30 is a multi-use temperature and humidity data logger based on Bluetooth wireless communication technology, convenient for users to read and get the report by APP.

The device can be optionally set with one or two external probes. It is ideal in freezer, medicine cabinet, wine cellar, warehouse, greenhouse, laboratory, supermarket, incubator,

refrigerator car and other scenarios where accessibility and mobility are crucial.

SOFTWARE

Tkeeper is a mobile APP designed for Freshliance Bluetooth temperature and humidity data loggers. Both Android and iOS versions are available. This APP works with wireless communication

via Bluetooth technology. It supports remote device configuration and control, online data viewing, filtration, analysis and synchronization among multiple users, as well as data export with

signature and email service. It also features powerful graphing functionality and automatic data analysis with the results of Max., Min., Avg. and MKT values, etc., as well as free data cloud

storage for 2 years.

It works with BlueTag T10, BlueTag TH10, BlueTag TH20, and BlueTag 30. Multiple devices can be added to the APP simultaneously, so as to help users to manage both devices and data efficiently.

And for a device with multiple monitoring channels (with one or two external probes), the APP will automatically identify the probes and support separate configuration, data viewing and export

for each monitoring channel.

In addition, this APP supports multiple languages, such as English, Chinese, German, Russian, and Portuguese, Spanish etc., and some practical performance, such as template management,

files management and group management.

FEATURE

Paired by Bluetooth and review history by APP

When in range, users can easily pair this Bluetooth data logger via Bluetooth communication, and then use Freshliance's free APP Tkeeper to remotely program this data logger

and view all recorded data, no need to open the container or vehicles, etc., so as to minimize the adverse effect on the cold chain monitoring. Location information is available too.

Comprehensive data analysis, filtration and graphing

This APP features powerful data analysis, filtration and graphing functionality, with the automatically analyzed results of max., min., avg., and MKT value, etc., so as to help users to view

all data more intuitively.

Data synchronization among multiple users

This collaborative APP allows multiple users to view online simultaneously. When one user uses the APP to view the recorded data of the data logger, all the data viewed will be

automatically synchronized to other users.

Up to three monitoring channels (External probes optional)

In addition to the built-in sensor, this Bluetooth data logger can also be optionally equipped with one or two external probes for temperature and humidity monitoring.

And the data recorded by each sensor/probe will be separately recorded, viewed and exported.

Multilingual user interface

The Tkeeper APP supports multiple languages, including Chinese, English, French, German, Portuguese, Russian, Spanish and Arabic, etc., more friendly for users to use.

Data filtration by minute or shorter time at no cost

Data filtering is the process of narrowing down the most relevant information from a large dataset using specific conditions or criteria. For data export, the APP allows users to filter

and sort data by minute or shorter time at no cost. It makes the analysis more focused and efficient.

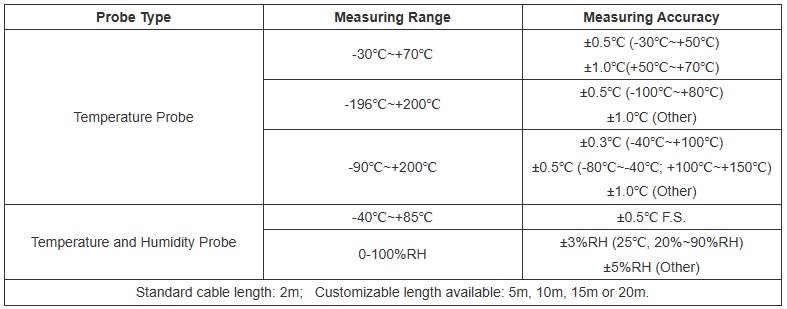

Multiple probe length and insulation options for the external probes

The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone

and flexible ultra thin cable, etc.

Flexible ultra thin cable is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head

as required.

Propylene glycol encased temperature probe for vaccine monitoring

It is designed to buffer readings against temporary air temperature shifts caused by opening doors or loading coolers and accurately simulate the thermal changes experienced

by products stored in the monitored environment.

It is ideal for vaccines, pharmacies and walk-in coolers, etc.

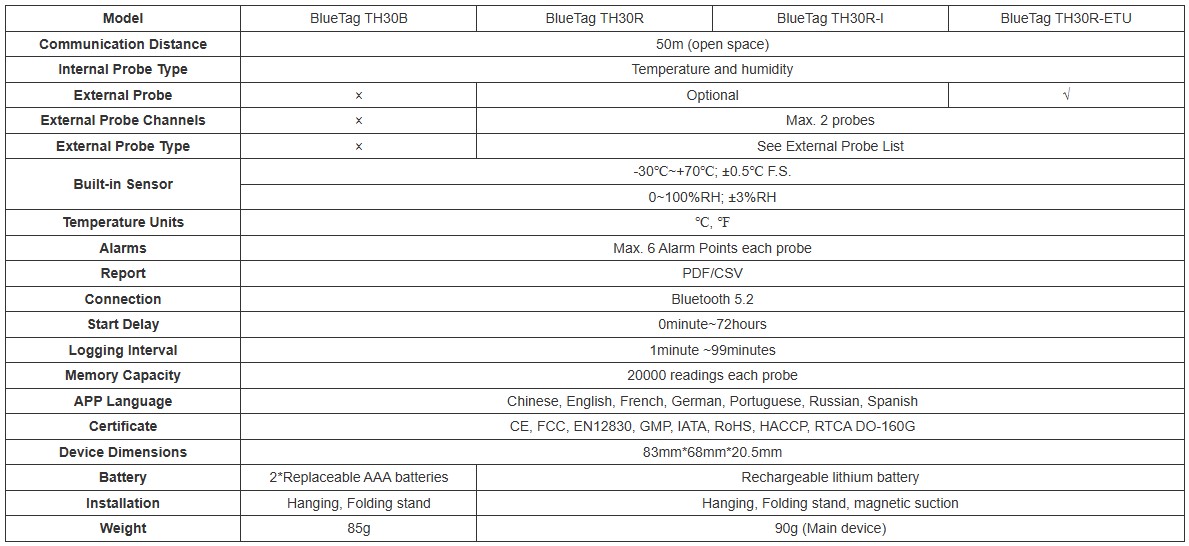

SPECIFICATIONS
